產品介紹 Product introduction

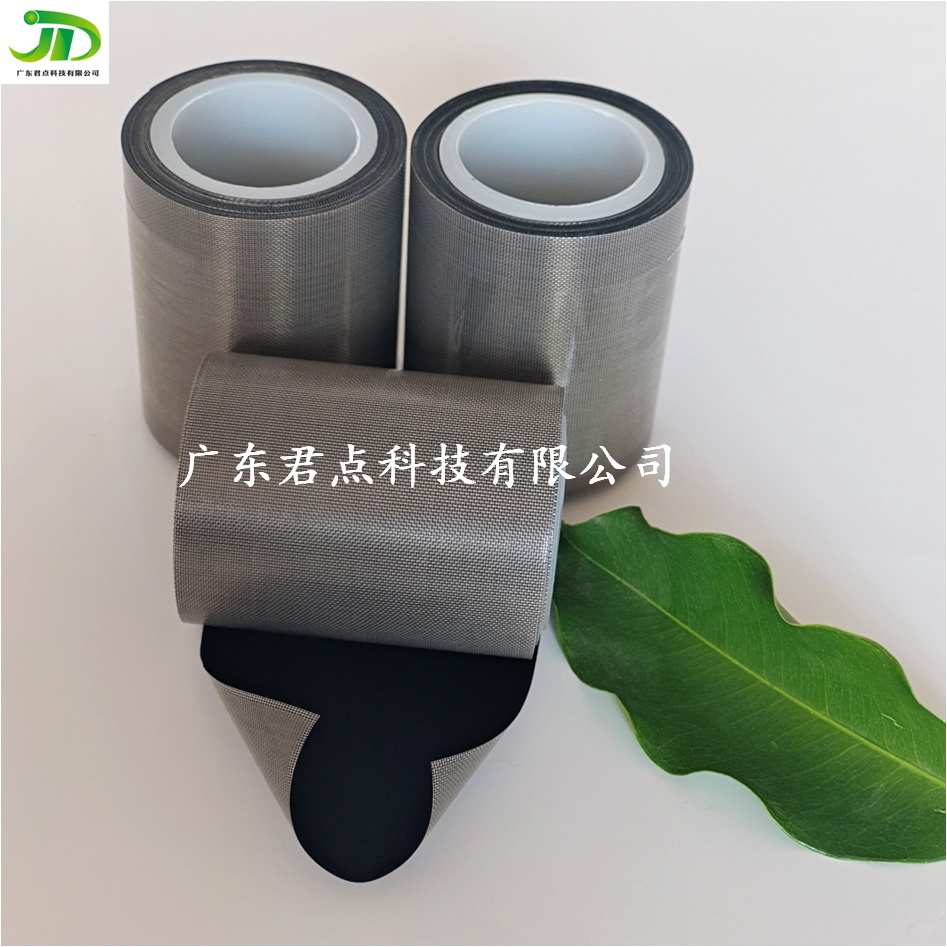

鐵氟龍玻纖復合硅膠皮 Teflon glass fiber composite silicone rubber

鐵氟龍玻纖復合硅膠皮是一款由 鐵氟龍玻纖布表面經鈉化處理與高彈性有機硅橡膠材料結合而成的新型高分子材料，材料具有超薄、超平整度、高強度的韌性等主要特性；它有力地結合了有機硅膠分子的耐熱性能、緩沖性能以及鐵氟龍的防粘性和玻纖布獨特韌性材料是與傳統緩沖材大之區別，，能滿足許多有特殊要求的設備使用。主要適用于高要求的熱壓設備，可極大地提高壓合的次數，降低生產成本，可隔絕超高溫產生的硅油與產品的直接接觸，對溫度有緩沖作用，使溫度較為均勻，平坦的表面可防止異物的殘留，以免影響熱壓頭因有殘留雜物而造成的熱壓效果，同時具有隔離保護作用。

Teflon glass fiber composite silicone rubber sheet is a new polymer material composed of Teflon glass fiber cloth surface after sodium treatment and high elastic silicone rubber material. The material has the main characteristics of ultra-thin, ultra flatness, high strength and toughness; It effectively combines the heat resistance and cushioning properties of organic silica gel molecules, the anti adhesion of Teflon and the unique toughness of glass fiber cloth. It is the biggest difference from traditional cushioning materials and can meet the use of many equipment with special requirements. It is mainly applicable to the hot pressing equipment with high requirements, which can greatly improve the times of pressing, reduce the production cost, isolate the direct contact between the silicone oil produced by ultra-high temperature and the product, buffer the temperature, make the temperature more uniform, and the super flat surface can prevent the residue of foreign matters, so as not to affect the hot pressing effect caused by residual sundries in the hot pressing head, At the same time, it has the function of isolation and protection.

產品型號 Product model：

TP-GF-0.15,  TP-GF-0.25  , TP-GF-0.38 , (黑色抗靜電系列)

產品用途：

1、適用于各類新型（柔性屏、3D眼鏡、OREDT、TP）COG與FOG綁定加熱壓合過程的防護、緩沖和隔離。

2、主要替代目前傳統使用性能單一的壓合材料，與傳統壓合材料比有更輕薄、更平整、導熱快、受熱均勻、不滲油、更耐用等特點。

3、特別適用于惡劣環境(高溫、耐油、高強度、高頻率)生產環境下的使用。

Usages of product:

1. It is applicable to the protection, buffering and isolation of various new types (flexible screen, 3D glasses, oredt, TP) cog and fog binding, heating and pressing process.

2. It mainly replaces the traditional pressing material with single performance. Compared with the traditional pressing material, it has the characteristics of lighter and thinner, smoother, faster heat conduction, uniform heating, no oil leakage and more durable.

3. It is especially suitable for use in super harsh environment (high temperature, oil resistance, high strength and high frequency).

產品特點：

1、導熱，緩沖，不出油，耐壓。

Features of product:

1. Heat conduction, buffering, no oil, pressure resistance.

產品規格：

1、（厚T：0.15--1mm*（寬W：5mm-1000mm）*（長L：5-100m），黑色(黑色抗靜電系列)。

Product specifications:

1. (thickness T: 0.15 -- 1mm * (width W: 5mm-1000mm) * (length L: 5-100m), black (black antistatic Series).

鐵氟龍玻纖復合硅膠皮性能參數：
